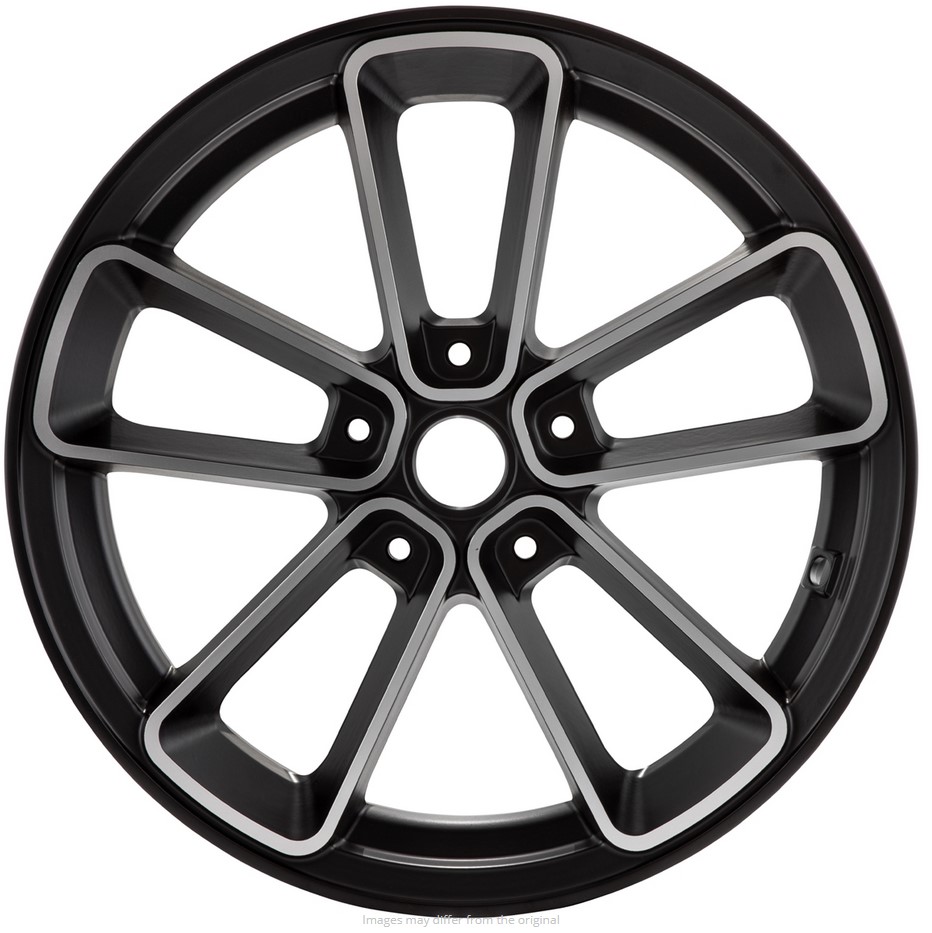

Rim front/rear 13” for Vespa GTS/​GTS Super/​GTV/​GT 125-300ccm, black with silver border

First existing 13" rim which can be ridden on the GTS with the ABE without any problems. No more legal gray areas, no more arguments with the TÜV inspectors - install the rims and the legal conversion to 13" is done. Also homologated with a 140 wide tire on the rear wheel - instead of the standard 130 tire, a 140/60-13" tire can now also be ridden quite legally at the rear. The rims themselves are manufactured taking into account the ETRTO (European Tire and Rim Technical Organization) guidelines, the industry specifications for rim and tire production.

• front/​back
• 3.00 -13"
• 10 spokes
• Aluminum
• black with silver border
• additional mounting kit is required for the rear
• with ABE

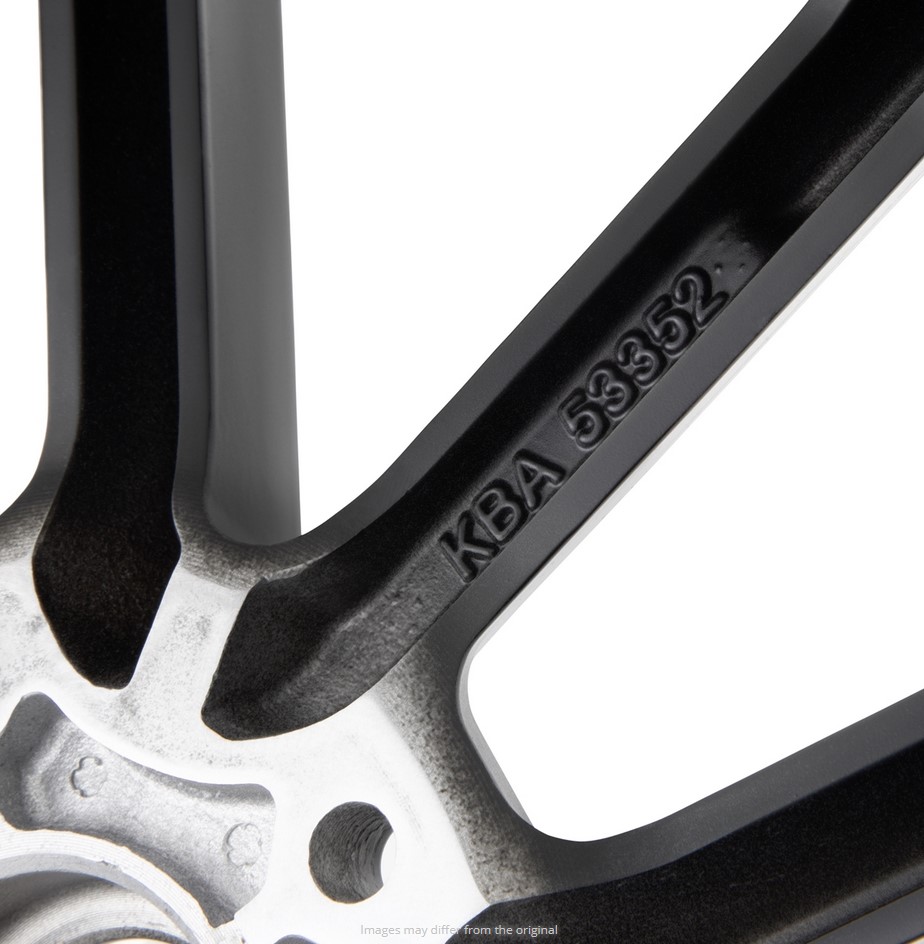

• KBA 53352

The rim is approved for the following tire sizes:

• Front tire size: 110/70-13 in connection with
• Rear tire size: 110/70-13 ww. 120/70-13 ww. 130/60-13 fw. 130/70-13 ww. 140/60-1

• Front tire size: 120/70-13 in connection with
• Rear tire size: 120/70-13 ww. 130/60-13 ww. 130/70-13 ww. 140/60-13

• Front tire size: 130/60-13 in connection with
• Rear tire size: 130/60-13 ww. 130/70-13 ww. 140/60-13

• Front tire size: 130/70-13 in connection with
• Rear tire size: 130/70-13 ww. 140/60-13

• Front tire size: 140/60-13 in connection with
• Rear tire size: 140/60-13

When using the 140/60-13" tire, a tire release from the respective tire manufacturer must be submitted. In the download area, we provide all permissible tires including the required tire release in the ABE document Available. The latest version of the ABE can be found in the downloads. Before purchasing, please check whether the ABE is valid for the desired vehicle.

Note: Changing the tire size will also change the gear ratio of the tires, ultimately resulting in a discrepancy the speedometer display leads. Since the original speedometer deviates by up to 10% from the real value, the deviation for 12" rims with 140 tires and for 13" rims with max. 140 tires is still within the tolerance. Actually, this is even an advantage, because with the larger tires the speedometer display approaches the real speed

Assembly instructions:

• Front wheel: Plug & Play. No additional assembly kit is required.
• Rear wheel: The bushing (item no.MV848039) is always required for rear assembly.
• For models that are equipped with ABS as standard on the rear wheel, a mounting kit (item no. MV000617) including new wheel bolts and screws for the tone wheel is required. The items are not included in the scope of delivery and must be ordered separately.
• After installing the rims on ABS models, the ABS/ASR system should be recalibrated. Detailed instructions are available in the download area or in the vehicle's user manual.
