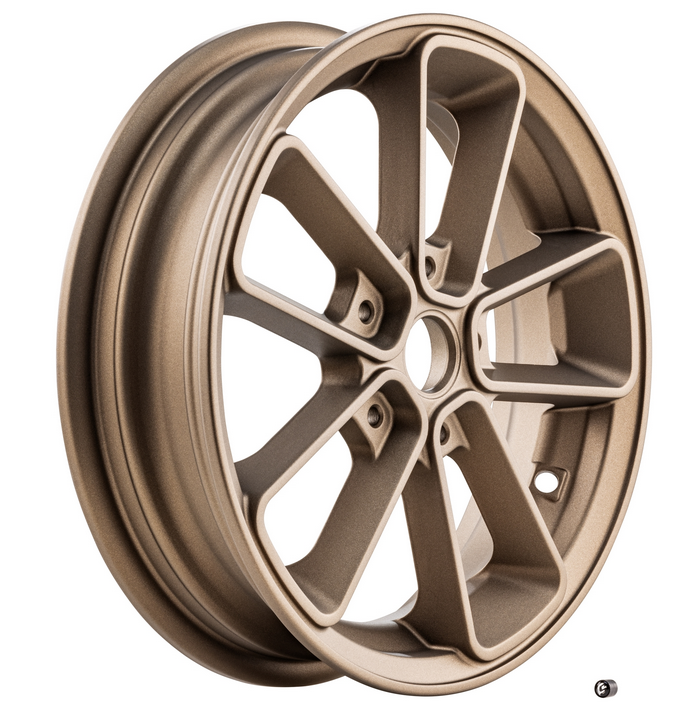

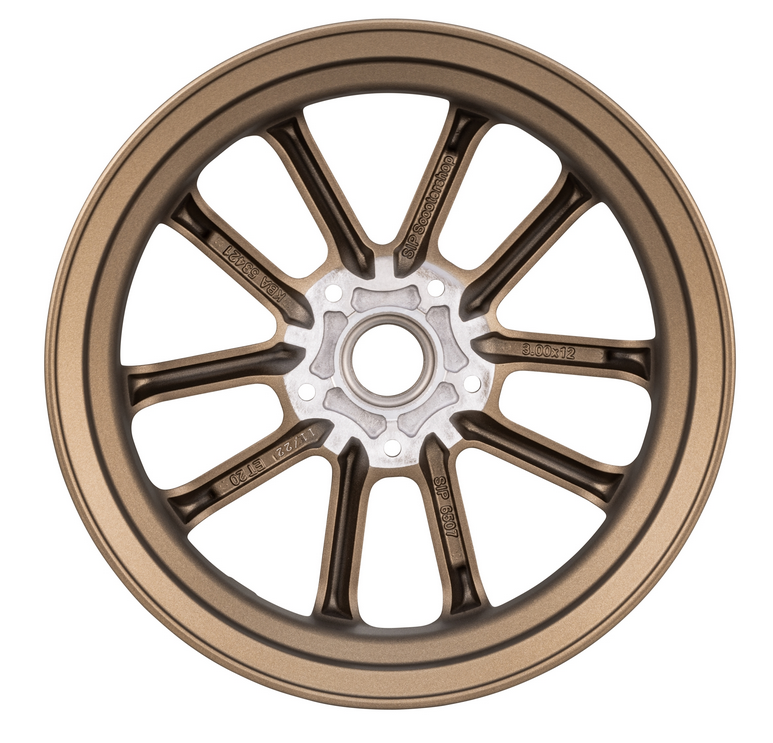

Rim front/rear 12" for Vespa GTS/GTS Super/GTV/GT 60/GT/GT L 125-300cc, bronze matt

The rim can be mounted front & rear plug & play. It fits all tires up to 140er width. The rims themselves are manufactured in accordance with ETRTO (European Tyre and Rim Technical Organisation) guidelines, the industry standard for rim and tire production.

• front/rear
• 3.00 Ø 12"
• 10 spokes
• Aluminum
• bronze matt
• for rear additional mounting kit is needed
• with ABE
• KBA 53421


The rim is approved for the following tire sizes:

• Tire size front: 120/70-12 in combination with
• Rear tire size 120-70/12 ww.130/70-12 ww. 140/70-12

• Front tire size: 130/70-12 in conjunction with
• Rear tire size 130-70/12 ww. 140/70-12

When using the tire 140/70-12" a tire approval of the respective tire manufacturer has to be presented. In the download area we provide in the ABE document all permissible tires including the required tire release. The latest version of the ABE can be found in the downloads. Please check before buying if the ABE is valid for the desired vehicle.

Note: By changing the tire size also changes the gear ratio of the tires which ultimately leads to a deviation of the speedometer display. Since the original speedometer deviates by up to 10% from the real value, the deviation is still within the tolerance for 12" rims with 140 tires as well as 13" rims with max. 140 tires. Actually, this is even advantageous, because with the larger tires, the speedometer display approaches the real speed

Mounting instructions:

• Front wheel: plug & play. No additional mounting kit is required.
• Rear wheel: For mounting rear is always the bushing (Art.-Nr.MV848039) needed.
• For models that are equipped with ABS as standard on the rear wheel, a mounting kit (part no.MV000617) including new wheel bolts and screws for the tone wheel is required. The items are not included and must be ordered separately.
• After mounting the rims on ABS models, the ABS/ASR system should be recalibrated. Detailed instructions are available in the download area or in the user manual of the vehicle.
